Gressel       Gripos       Grepos        Solinos       S2       Gredoc        Centric C1 + C2

Gressel Centric Vises

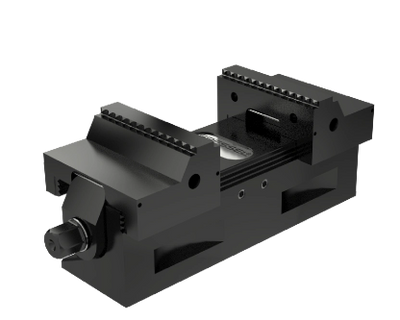

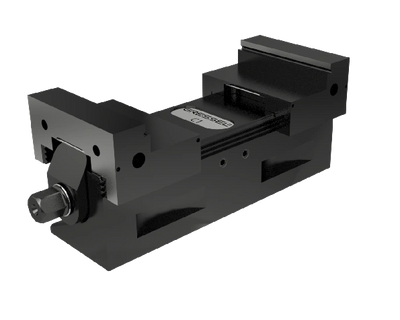

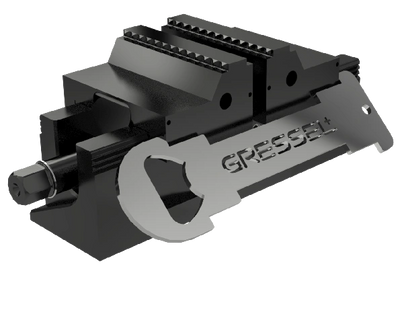

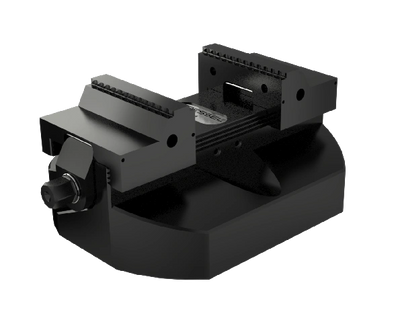

C1 Centric vice

Quick jaw change, fully encapsulated, precise


Centric vice C1 in mechanical version with 100% encapsulation and quick jaw change. Ideally suited for machining blanks and finished products, multiple clamping and automation of pallet storage.

Quick jaw change



- jaw change in a few seconds

- easy handling

- different jaws

Fully encapsulated + precise



- completely encapsulated system

- economic version for blank camping with reversible jaw grip

- precise version for clamping finished parts with jaws which are ground in clamped position

Clamping system for automation



- can be directly integrated into pallets - ideal for use in the GRESSEL workpiece storage

- centric multiple clamping on base plates or tombstones

- low cost solution for pallet storage

- adaptable for various supplementary zero-point clamping systems

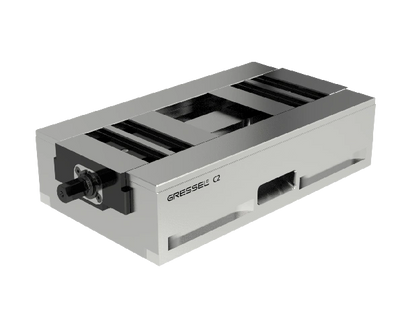

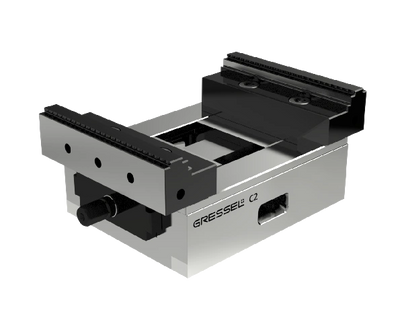

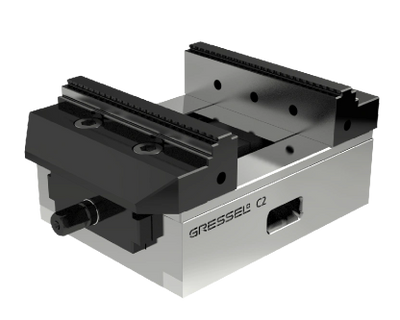

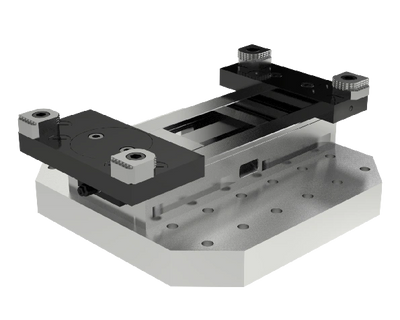

C2 Centric Vise

High precision and process reliability


Centric vice C2 in mechanical version with high precision and clamping force. Closed system with optimised chip ejection for high process reliability.

High precision



- pre-clamped centre bearing without play (ball bearing)

- high repeat accuracy ± 0.01 (80+125) / ± 0.015 (160)

- high precision due to precision-fitted carriages

Completely encapsulated system



- spindle is protected in closed system

- guaranteed chip ejection

- high clamping force of 25 kN (80) / 35 kN (125) / 50 kN (160)

Ideal for automation



- low cost solution for pallet storage / automation

- machining first and second operations in one clamping system

Downloads

Brochure C1 Centric Vise (pdf)

Download

Brochure C2 Centric Vise (pdf)

Download
